AC220V ATC CNC Router , 24000rpm 3D CNC Wood Carving Machine

Dongguan Kindlytech Technology Co.,Ltd.
Contact Now

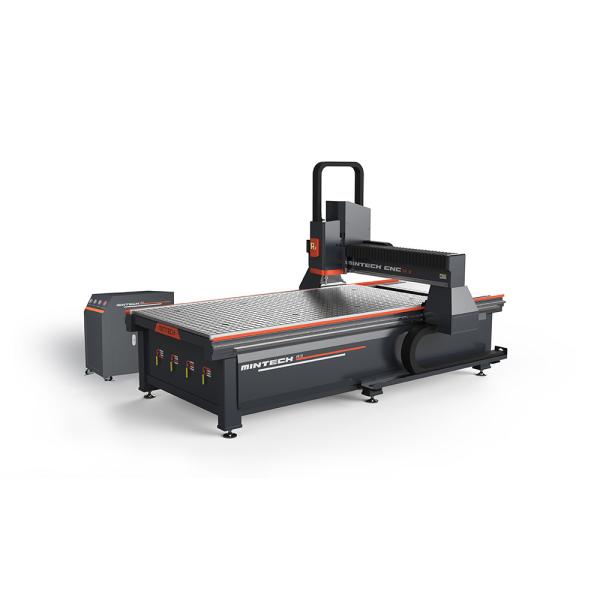

AC220V ATC CNC Router , 24000rpm 3D CNC Wood Carving Machine

Brand Name : KINDLYTECH

Model Number : R3

Certification : SGS

Place of Origin : Guangzhou

MOQ : 1 set

Price : USD 12000 - 15000 set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 set per month

Delivery Time : 7 work days

Packaging Details : Wooden Box

Product Name : ATC CNC Router

Positioning Accuracy (mm) : 0.05mm

Range of Spindle Speed(r.p.m) : 4000-24000RPM

No. of Spindles : single

Spindle Motor Power(kW) : 5.5KW

Voltage : AC380V / 50Hz / 3PH

Weight (KG) : 1500KG

Warranty : 1 Year

Contact Now

High Precision Servo Motor ATC CNC Router For Acrylic

WoodFurniture Industry:

Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates,cupboarddoors, interior doors, sofa legs, headboards and so on.
Advertising Industry:

advertising identification, sigh making, Acrylic engraving and cutting, crystal word making,blaster molding,and other advertising materials derivatives making.
Die Industry:

A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand,plastic sheeting,PVCpipe, wooden planks and other non-metallic mold.Relief Sculpture and 3D Engraving & Cylindrical object.

Model R3
Working voltage AC380V / 220V /50HZ / 3PH
Working size 1300mm * 2500mm * 60mm
The height from beam to working table 150mm
Z axis travel 160mm
Max working speed 10m/mint (Tools required for maximum cutting)
Maximum idle speed 15m/min
Repeated positioning accuracy + / - 0.05mm
Driving mode: X, Y axis adopt bevel gear rack transmission; The Z axis adopts the high precision ball screw drive.

AC220V ATC CNC Router , 24000rpm 3D CNC Wood Carving MachineAC220V ATC CNC Router , 24000rpm 3D CNC Wood Carving MachineAC220V ATC CNC Router , 24000rpm 3D CNC Wood Carving MachineAC220V ATC CNC Router , 24000rpm 3D CNC Wood Carving MachineAC220V ATC CNC Router , 24000rpm 3D CNC Wood Carving Machine

Packaging Details
1. The innermost layer is EPE pearl cotton film package.
2. The middle layer is wrapping up with environmental protection material .
3. And the outermost layer is winding up with PE stretch film.
4. They're very environmentally friendly.
5. If you need a wooden box, we will make a wooden box.

FAQ:

Q: I knew nothing about this machine, what kindof machine i should choose?
A: Just tell us what you want to do byusing CNC machine, then let us give you perfectsolutions and suggestions.

Q: What technical services can you provide?
A: We will send video and English manual with the machine. And 24-hour professional technicians online training and problem
solving. It provide detailed installation courses.

Q: If some problems happen to this machineduring warranty period, what should I do?
A: We will supply free parts during machine warranty periodif machine have some problems. While we also supplyfree life long
after-sales service. So any doubts, just let usknow, we will give you solutions.
